HDPE Based, Protective Drainage Dimple Board - DRAIN-B
DRAIN-B
Description

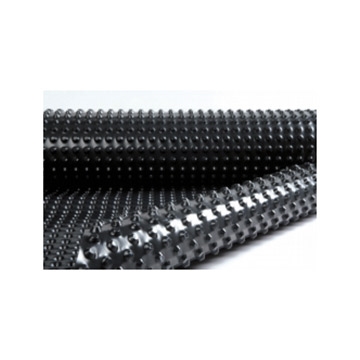

DRAIN-B is high density polyethylene (HDPE) based, plant roots and decay resistance drainage dimple board to protect curtain walls against water and moisture by separated from the earth. It is produced as 400, 500 and 600 gr/m²
Fields of Application
It is used for the protect water and heat insulation systems which applied on foundation and curtain wall of buildings.
Features and Benefits
- Provides uniform distribution of the pressure given by earth.
- Resistant to plant roots and decay.
- Prevents any damage on the waterproofing that occur while the land case.
- Allows the breath of buildings.
Application Procedure
Application Method
DRAIN-B is inserted as 15 cm above from the waterproofing layer and bubbles it has faced with application surface. DRAIN-B is immobilised on the application surface as 20 cm distance or engaged on the surface with pressure profile. Waterproofing surface must be protected during the montage. At least 20 cm overlapping and additional fastening equipment is need on the plate joint areas.
Package
400 g/m2 2m x 20m
500 g/m2 2m x 20m
600 g/m2 2m x 20m
DRAIN-B GEO The drainage dimple board, prevents waste space of surrounding the bubble with its integrated geotextile cover. It has high drainage capacity. The air gap between the bubbles ensures safe drainage of flowing water and protect the structure. Drainage dimple board has high compression strength and important technical features in tunnel and foundation applications. DRAIN B GEO drainage dimple board; preferred in under roads, parking areas, bridges and garages because of high drainage performance.
